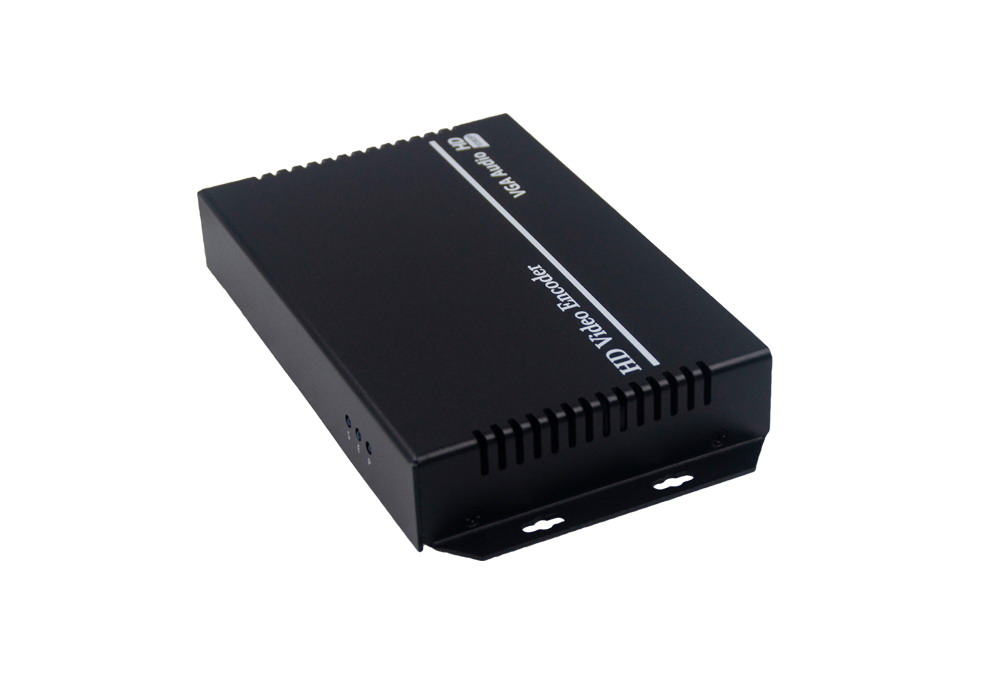

MV-E1007V H265 VGA Video Encoder

Model:MV-E1007V

With 2 VGA ports, 1 VGA input, 1 VGA loopback

loopback available even power supply cut off

SRT / HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast)

H.265 VGA Video Encoder - It is a HD audio & video encoding device with powerful functionality, which supports input VGA max resolution at 1920×1200@60fps, and output stream resolution can up to 1920×1200@60fps, 1080P@60fps, etc. This Encoder works with HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF. It also works with online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.


Product features

1. With 2 VGA ports, 1 VGA input, 1 VGA loopback (loopback available even power supply cut off).

2. Adopts professional encoding chip, embedded HiLinux System, high stability and efficiency.

3. Friendly Web Control UI, default IP is 192.168.1.168.

4. Support HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF.

5. Support Multi RTMP(S) (Main stream & Sub stream) to different Media Streaming Server.

6. Provide custom resolutions, Main Stream Preset Resolutions –1920x1200, 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270, etc.

7. Support Text and image insert as Stream Logo for Main stream & Sub stream.

8. Automatic detect the input video signals, output stream will show no signals when input signals interrupted.

9. Output Stream bitrate adjustable.

10. Support Audio digital gain.

11. Support External Analog audio input.

12. Support firmware upgrade.

13. Support remote control via router port forward.

14. Wifi version for option.

15. 3U chassis available, max supports 16Pcs Encoder installed.



Interfaces
Video Input1 VGA input, 1 VGA loopback   Max support 1920x1200, 1920x1080P@60Hz
Audio Input3.5mm L/R Analog Audio line in & Output
Ethernet1Gbps, RJ-45
WiFiOption – 2.4G
Video Encoding
Video FormatH.265/HEVC H.264/AVC High/Main/Baseline Profile  MJPEG/JPEG baseline
Video ResolutionMax support 1920x1200, 1920x1080P@60FPS
Video Bitrate0.1~32Mbps
Video FPS5-60FPS
Bitrate ControlVBR/CBR
Streaming  ProtocolsHTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) ONVIF
Audio Encoding
Audio FormatAAC/AAC+/AAC++/MP3/MP2/AC3 G711
Sample Rates44.1kHz/48kHz
Bitrate12~640kbps
System
Control MethodWeb based management – IP 192.168.1.168
LanguageChinese-English control interface
FirmwareEthernet software upgrade
Working environment
Operating temperature-10 to 70 deg C
Storage temperature–20 to 80 deg C
Relative Humidity5% to 90% non-condensing
Miscellaneous
Dimension (L× W× H)185*110*30mm
Approx weight300g
Power adapterAC input 100-240V 50/60Hz  DC output 12V 1A

Application
1. IPTV (Wowza, Xtream Codes Media Server, etc.)
2. Online Live Broadcast ( YouTube, Facebook, Ustream, Twitter, etc.)
3. NVR (Network Video Recorder)

4. Recording System / Software

5. Digital Signage
6. Teaching / Campus Broadcast
7. Hotel TV system
8. Video Conference



Our Services

1. 1-Year Warranty.

2. Online, remote help.

3. Encoder Function customizes.

4. OEM & ODM welcomed.
