4G Live Video Encoder - Q7

Overview

Q7 - 4G LTE Wireless HDMI/SDI Video Encoder, which can transfer the HDMI Video to internet over 4G TD-LTE / FDD-LTE network, it is the best solution for stable and real-time video wireless transmission. Its high integration and cost-effective designs make this device widely applied in outdoor live stream, broadcast.

Connection & Application

Q7 connection

Q7 Application

How it Works

Easy to Setup & Use - ONLY need 3 Steps to let your camera video to Internet
1. Connect the Q7 - 4G HDMI Video Encoder with Internet by 4G Mobile Network or RJ45 cable network.
2. Download & Install M Live APP (within App Store by search M Live shenzhen mine), by ID and password to login.

M LIVE DownloadLogin to M Live

3. Bind your Q7 with the ID by Scan QR code or input the Device Number.

Add Q7Q7 AddedQ7 Online


Now, push your stream to YouTube, FaceBook, Twitter... and enjoy it.

Q7 Youtube Live Stream Settings Q7 rtmp streaming settings for Q7



Advanced Settings
Adavanced SettingsVideo and Audio SettingsH.265 Recording SettinsVideo Flipping

OSD Settings for RTMP Stream
OSD Settings for RTMP Stream

Specifications

Video
Input

1* HDMI

Supports HDMI Resolution

1080P/720P@24/25/30/50/60fps 1080i@50/60fps

Encoding type

H.264 for RTMP    / H.265 for recording

Encoding Levels

H.264/AVC High / Main / Baseline Profile

Output TS Steam Resolution

1920x1080 1280*720 960*540 848*480 640*360 480*270

Encoding Video FPS

15-30FPS

Encoding Video Bitrate

adjustable

Bitrate control

VBR / CBR

TS Protocols

RTMP

Audio

Input

HDMI Audio or 1*3.5mm Mic

Sample Rates

32kHz 44.1 kHz, 48.0 kHz

Encoding

AAC (48K)

Network

SIM Slot

4G TD-LTE / FDD-LTE (Modules are optional for different telecom operators)

WiFi

2.4G IEEE 802.11 a/b/g/n

Network

100Base-T Ethernet interface

System

Control Panel

iOS / Android APP

Firmware Update

supports

Remote management

supports

Working environment

Operating temperature

-20 to 80 deg C

Storage temperature

-40 to 90 deg C

Relative Humidity

5% to 90% non-condensing

Dimension & Accessories

Dimension

122mm*94mm*31mm

Weight

260g

Hot shoe

1 Pcs

Battery / Power adapter

3.7V 4000mAh (works up to 4 Hours) / DC 5V 2A



Q7 connection

App Download

You can contact us to get the Android Apk, for iOS, you can download from appstore by search the M Live.

Q7 Manual

Read here...

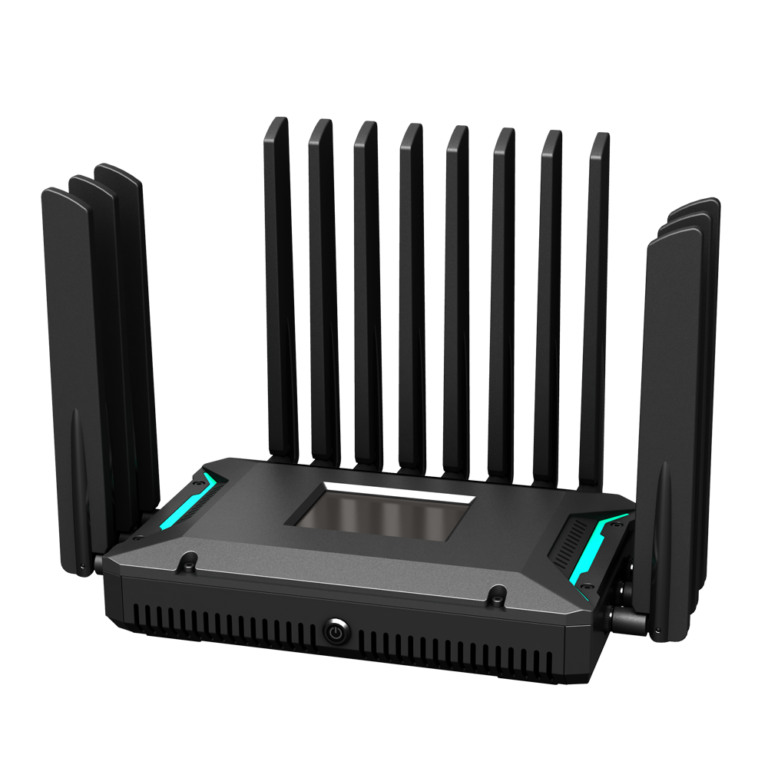

3G/4G LTE Broadband Bonding Router - M4

Overview

M4 - coming soon....

How it Works

Specs

Server Installation


To know more information ... ...
